WET-AREA IBC/TOTE TANK INSULATOR

Overview

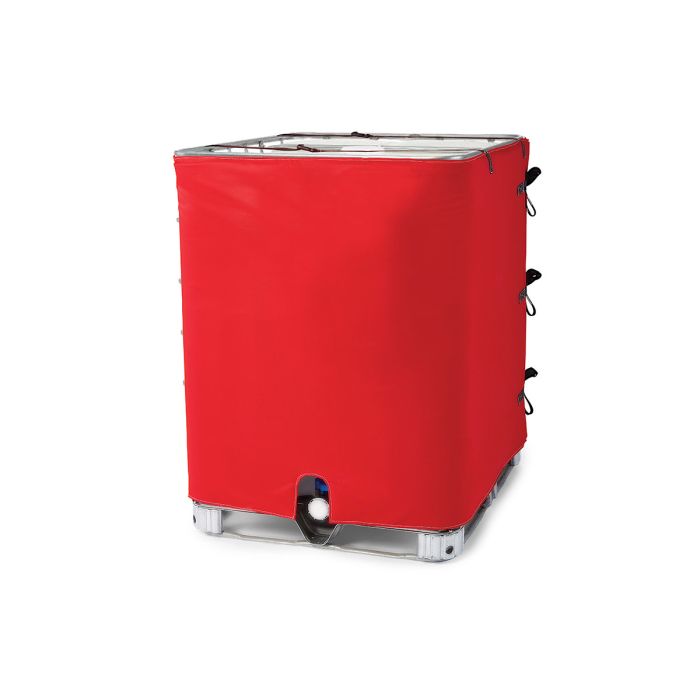

ATEX Insulated IBC Heater. 230 VAC. 2400 W. Fits 1000 Litre Containers. Length 4,4 m. Height 100 cm. Includes 2 Built-In Ex-PT100 RTD Temperature Sensors. Maximum Operating Temperature 180°C. Maximum Ambient Operating Temperature -40°C to 60°C. 3,0 m Power Cord and Sensor Cables with Crimped Ferrule Terminated Leads. For Use in Potentially Explosive Gas and Dust Atmospheres. The Heater Must Be Temperature Controlled and Limited To The Required Temperature Class. T3. IP65. ATEX II 2G Ex e mb IIC T3 Gb, II 2D Ex e mb IIIC T120°C Db, -40°C ≤ Ta ≤ +60°C (ambient temperature), EC-type examination certificate TPS 11 ATEX 29587 011 X.

HIghlights
Ideal for a wide range of hazardous-area drum heating applications - ATEX Gas and Dust
Fully insulated and water resistant - Suitable for use in outdoor or wet environments - IP 65 rated
Operating temperatures up to 200°C (392°F) - T3
Adjustable straps with buckles for easy on and off installation
2-RTD sensor system - For process and high temperature limit

Explosion protection marking:
Gas ATEX Approval 2G Ex e mb IIC T3 Gb
Dust  ATEX Approval 2D Ex e mb IIIC T120°C Db
-40°C ≤ Ta ≤ +60°C (ambient temperature)

System approved with an EC-type examination certificate
according to RL 2014/34/EU appendix III

EC-type examination certificate
TPS 11 ATEX 29587 011 X

Specifications:

• Outer Material: Waterproof PTFE-coated glass fiber fabric
• Insulation: 20 - 25 mm (0.8 to 1.0 in) glass needle mat
• Nominal Voltage: 230 VAC
• Nominal Power: 1200 W
• Heating Element: Grounded for your safety
• Operating Temperature:
  • -40°C to 200°C (-40°F to 392°F) (steel drum)
  • -40°C to 70°C (-40°F to 158°F) (plastic drum)
• Temperature Class: T6, T5, T4, T3 (depending on temperature limiter setpoint)
• Protection Ratings: IP65/I
• Zones: 1/2 (gas); 21/22 (dust)
• Sensor: 2 standard 3-wire PT100 RTD sensors
• Power Cord: 3 m (10 ft) long with crimped ferrule terminated leads

MÃ ĐẶT HÀNG

Application:
Various liquids, gasses, and even solids are often stored in bulk containers. Common containers include drums, IBC tanks, and gas bottles. In order to effectively protect the contents from cold, reduce viscosity, or increase efficiency for easy dispensing, the contents must be kept warm. If the temperatures of the contents fall below desired levels, the contents could be ruined or unable to dispense at all. Many of these containers are in hazardous areas where ATEX certification is a requirement for the type of heaters permitted for use.
